Windshield Washer Nozzles

A windshield washer nozzle takes fluid from the washer pump and directs it onto the glass in a controlled fan, mist or multi-jet pattern. The nozzle has to deliver enough fluid across the wiper sweep without wasting it over the roof or into the path of another vehicle.

The spray angle is built into the nozzle body. Two nozzles that look almost identical can aim differently because they were designed for different hood, cowl or wiper-arm geometry. That is why a part number or a careful dimensional match matters more than appearance alone.

Fan-spray nozzles produce a wide, flat pattern and are common on passenger cars. Multi-jet nozzles use several small openings to cover the windshield, while mist nozzles produce a finer spray. The correct pattern depends on the vehicle's hood height, wiper layout and washer-system pressure.

Some vehicles use heated nozzles to help prevent ice from blocking the spray opening. A heated nozzle normally has an electrical connector in addition to the washer hose. If the original part has a connector, a standard non-heated nozzle is not a direct replacement.

Other layouts use a spray bar on the wiper arm, a nozzle mounted under the cowl, or a check valve built into the nozzle or hose. Check the old assembly carefully before ordering so you know whether the replacement includes the valve, seal or retaining clip.

Start by listening for the washer pump. If the pump is silent, check the fuse, relay, switch and pump connector before blaming the nozzle. If the pump runs, disconnect the hose at the nozzle and operate the washer briefly. Fluid at the hose but no spray at the glass points to a blocked or failed nozzle.

If fluid does not reach the nozzle, inspect the hose for a kink, split or disconnected joint. A spray that arrives late and then bursts usually points to a failed check valve rather than a clogged nozzle. Fluid that freezes in winter can also crack the nozzle body or hose.

A nozzle can be cleaned if the housing and spray slot are intact. Soak it in warm water and clear loose debris gently. Replace it if the body is cracked, the retaining tab is broken, the spray cannot be aimed correctly or the pattern remains uneven after cleaning.

Use the OE or interchange number on the original nozzle as the first match. Also confirm the mounting style, hose-barb diameter, electrical connector, spray direction and whether the nozzle sits on the hood, cowl or wiper arm.

Model year and trim can change the nozzle even when the vehicle looks the same. On BMW, MINI, Audi and Volkswagen applications, a different hood or cowl design may use a different spray angle. For Honda, Toyota, Ford and Nissan models, confirm the number rather than assuming that one nozzle covers every trim.

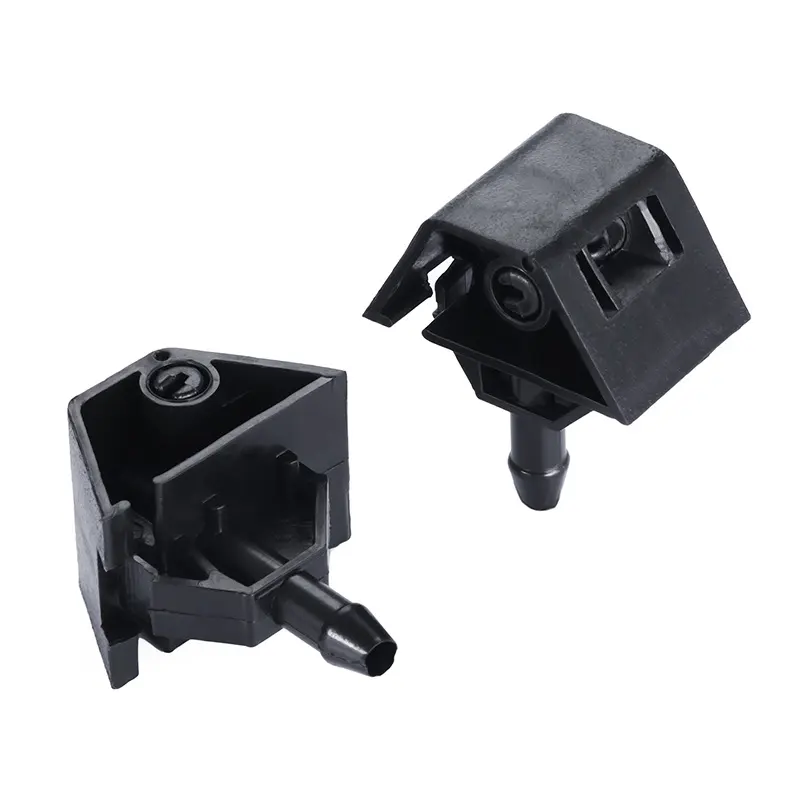

Our range includes windshield washer nozzles for Honda Accord, Civic and Odyssey; Toyota Camry and Corolla; BMW 3 Series and MINI Cooper; Ford Explorer, Mustang and Focus; Nissan and Infiniti; Hyundai and Kia; Jeep Grand Cherokee; Cadillac; and Volvo applications.

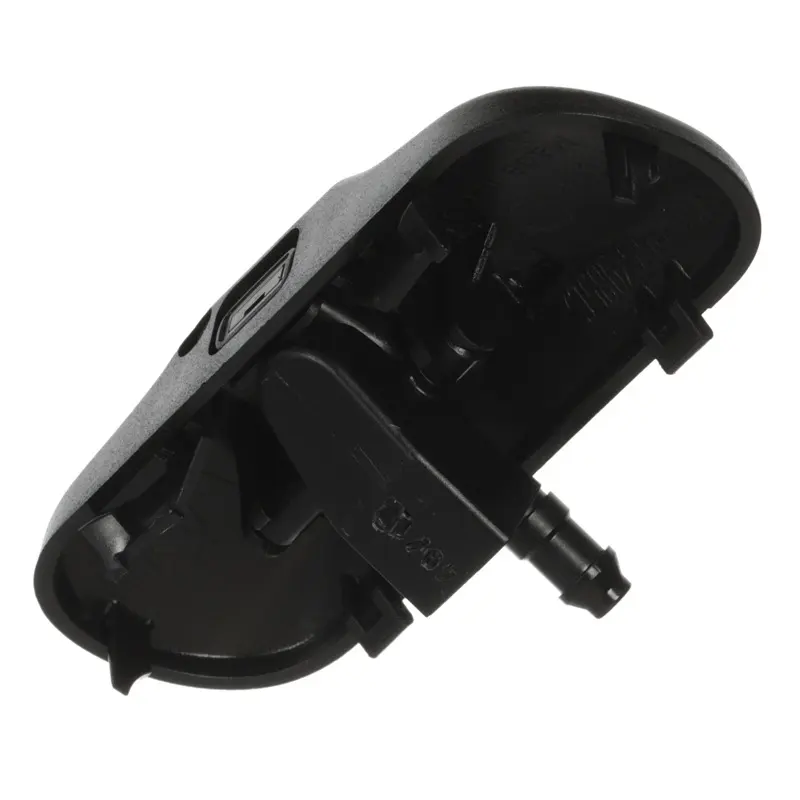

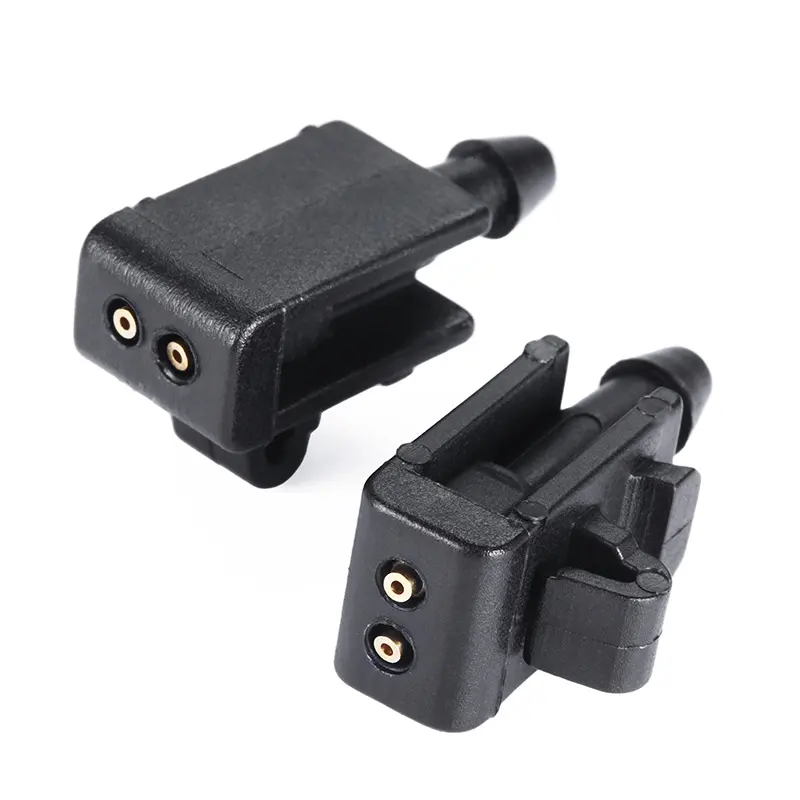

We also stock VW, Audi and Skoda nozzles, including Jetta, Golf, Passat, Beetle, Tiguan, Touareg, A3, A4, A6, Q5 and Q7 applications. Renault, Dacia, Peugeot, Citroen and SsangYong fitments are listed where the original number and mounting type match.

Replacing a nozzle is usually a short job: release the retaining clip, remove the hose, disconnect the heater wire if fitted, fit the new nozzle and test the spray pattern. Work gently around aged hood and cowl plastic, and use washer fluid rated for the local winter temperature.

MotiveCrate supplies windshield washer nozzles and washer-system parts for repair shops, detailers and resellers. Listings state the pack quantity where more than one piece is included. Mixed cartons, neutral packaging and private-label packing are available for volume orders.
